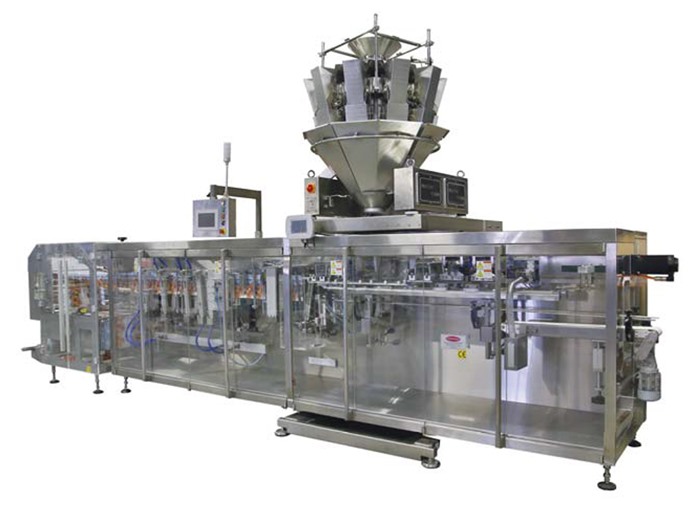

Doypack Packaging Machines with Electronic Weighing System

DB/S 70-105 is Full Automatic Stand Up Pouch Packaging Machine which works from Roll to Final Pack. It is suitable for Products like Nuts, Dragees, Frozen Food, Pasta, Spices, Chips, Cookies, Biscuits, Chocolate, Bolts, Fittings etc.. Packages can be made with Zipper, Valve, Eurohole, Or Spout optionally. Please check the sections in below for more details.
TECHNICAL SPECIFICATIONS
TECHNICAL DETAILSDOYPACK PACKAGING MACHINES working from the ROLL
Feeding UnitsMultihead Weighing System
Auger (Screw) Filling System
Volumetric Dosing System
Liquid Pump Filling System
Filling Range20 - 500 gr
Packaging Speed30 - 70 p/p/m
Type of Packaging MaterialOPP, CPP, PET, ALU, Metalize and other Laminated Films
Min. Dimensions of the Bag85 x 140 mm
Max. Dimensions of the Bag200 x 280 mm
Max. Width of the Roll660 mm
Inner Diameter of the Core76 mm
Max. Diameter of the Roll550 mm
Machine Dimensions6400 x 1500 x 1600 mm
Machine Weight1.050 kg
Mechanic StructureServo Controlled
Pneumatic SystemsFESTO
Control SystemBOSCH REXROTH
Electricity Supply & Consumption380V AC/50Hz–12 kw
Air Supply & Consumption6 Bar – 300 lt/min.

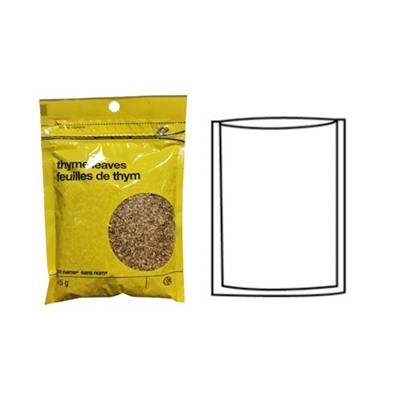

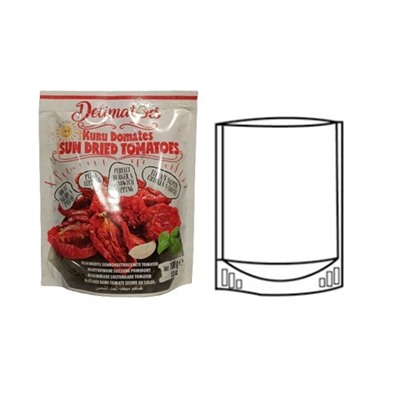

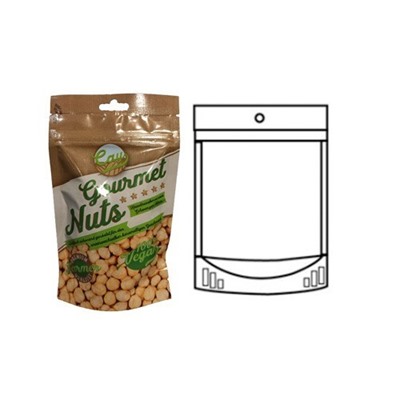

PACKAGE TYPES
OPTIONAL APPLICATIONS
» Unwanted materials checking and automatic reject systems before or after the filling process.
» Gas Flushing System
» Gas Level Controlling Systems
» Printer for batch number, due date and coding.
» Checkweigher Systems with automatic reject.
» Cleaning system on the platform
» Labeling System
» Eurohole, Roundhole or Handle Pounch
» Banner Applicator
» Taso Feeding Unit
» Anti-Static Bar
» Dust Sucking System
PRODUCTS SUITABLE WITH THE MACHINE
» Nuts
» Dry Fruit
» Chips
» Frozen Meat and Chicken Products
» Frozen Vegetables and Fruits
» Frozen Bakery Products
» Pasta
» Biscuits, Cookies
» Chocolate
» Candies, Jellybeans
» Seeds
» Coffe Beans, Granular Coffee,
» Cat Litter
» Pet Food
» Soil and Fertilizer
» Granular or Crystallised Chemicals
» Legumes
» Fresh Fruit and Vegetables
» Tea
» Sugar, Salt
» Fittings and Spare Parts
FEATURES AND ADVANTAGES
» Full Automatic working principle is reducing labor cost.
» Reduces Packaging Material Costs.
» PLC and HMI interfaces are easy to use.
» Modifications are easy and efficient
» Machines can easily integrated with production lines or cartoning systems.
» Machines are manufactured according to the CE Regulations and Safety Standarts.
» Full Automatic Roll Centering System
» End of Roll warning system with LED and Audio Alarm
» Easy Roll changing System
» Functioning with or without photocell
» Level Controll System
» Product protection systems can be easily integrated.
» Communication ability with SAP systems.
» Distance Controlling Systems helps to reduce service time and cost.
