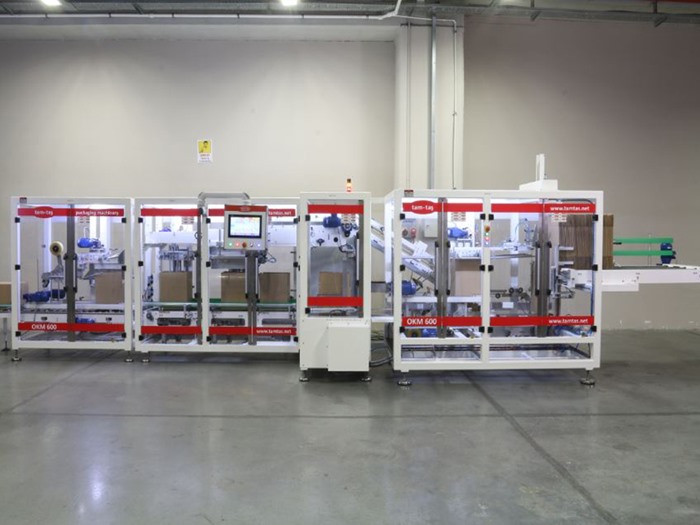

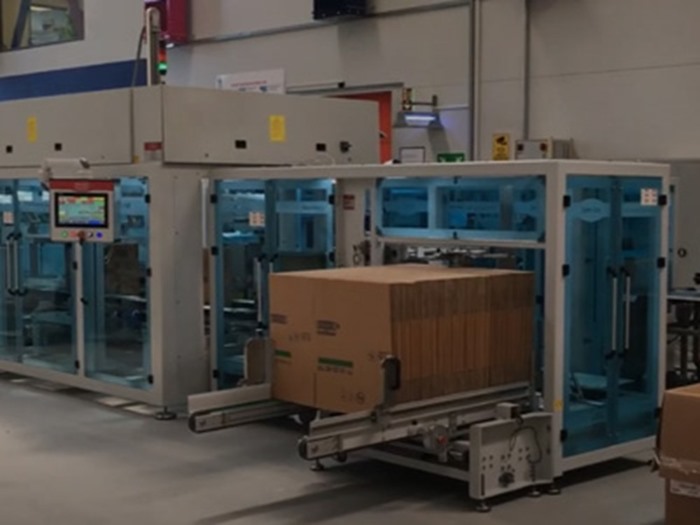

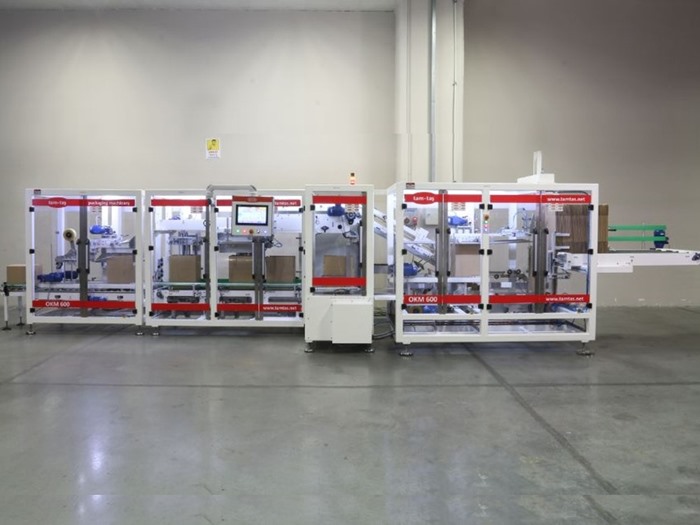

OKD 800 Full Automatic Cartoning Machine

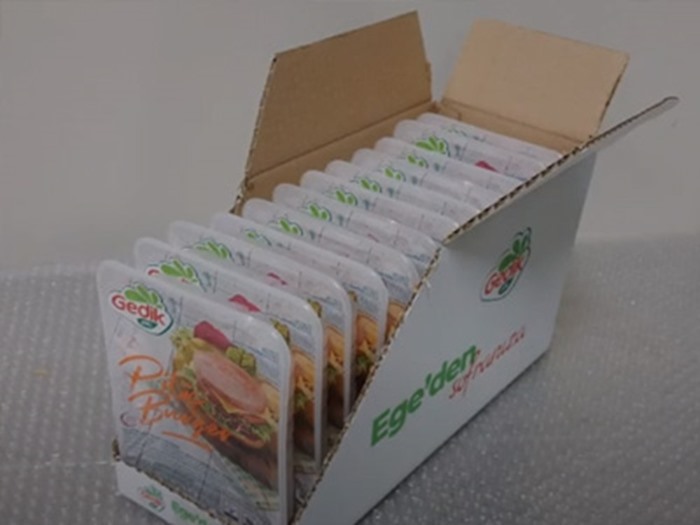

The OKD800 Full Automatic Cartoning machine is able to place all kind of grouped bottles, jars & cups, or flexible packages into cartons as in the desired positions. It takes the cartons from the magazine full automatically tapes them from the bottom. It is filling the products coming from one or several packaging machines as in the positions desired inside the cartons. After the filling process it tapes the top of the cartons and does the recheck of the weight. The checkweigher system is designed to reject all the filled cartons which are out of the target range of weight. The size changes could be done under a minute. It is suitable for all type of packed products and works with the pick and place principle.
TECHNICAL SPECIFICATIONS
TECHNICAL DETAILSOKD 800
Carton Filling and Stacking SystemServo Counter and Distributor System (Pick and place)
Packed ProductsAll kind of packed Products
Cartoning Combinations & QuantityAdjustable (Depending on the product dimensions)
Infeed Capacity10-12 Carton per Minute and 110-120 Packages per Minute Infeed Capacity
Carton Material Single or double wavy corrugated
Width of the CartonMin 120 mm – Max 280 mm
Height of the CartonMin 120 – Max 450 mm
Open Carton DimensionsMin 540 X 330 mm – Max 800 X 650 mm
Closed Carton DimensionsWidth: Min 200mm Max 300mm Length: Min 150mm Max 350mm
Carton HeightMin : 130mm -- Max : 400 mm
Carton Storage Sizes140cm
Dimensions of the Machine6100x2950x2970mm
Weight of the Machine1.750 kg
Mechanic StructurePNEUMATIC / SERVO
Pneumatic SystemFESTO
Electric SystemSIEMENS / OMRON
Power Supply & Consumption380V AC/50Hz–6 kw
Air Supply & Consumption6 Bar – 450 lt/min
FEATURES AND ADVANTAGES
» PLC and HMI interfaces are easy to use.
» The compact size of the machine helps it to be used in smaller places too.
» The chain system is facilitating the feeding of cartons.
» Modifications are easy and efficient
» Machines can easily integrated with production lines.
» Machines are manufactured according to the CE Regulations and Safety Standarts.
» Easy and quick to change with the recipe system.
» Easily counting and positioning with Servo System which helps to change the positioning at filling..
» Speed controlling system.
» End of Carton warning system with LED and Audio Alarm
» Communication ability with SAP systems.
» Full Automatic working principle is reducing labor cost.
» Reduces Packaging Material Costs.
» PLC and HMI interfaces are easy to use.
» Distance Controlling Systems helps to reduce service time and cost.
» Full automatic counting system guarantees quantities.
