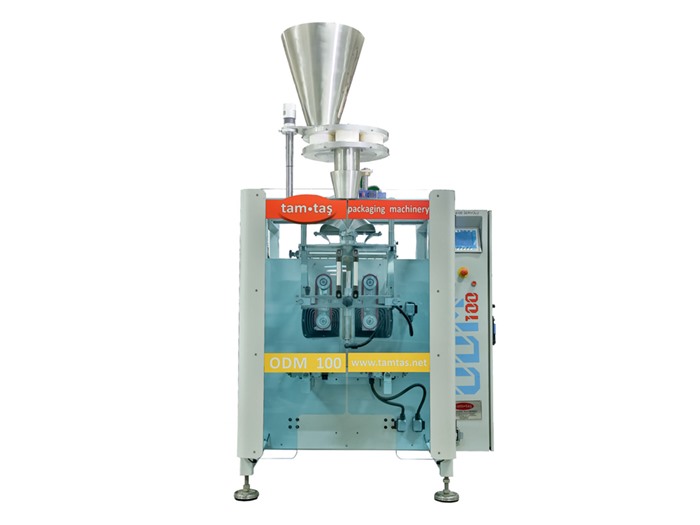

ODM100 Vertical Packaging Machine with Volumetric Dosing System

Vertical Packaging Machine makes Pillow bag as standart. Standup Bag upon demand. The max. weight to pack is ~ 1000gr. The Max pack sizes are 200*300 mm. It's manufactured as either servo or pneumatic according to the demanded capacity. It is used to pack all kind of crystalised products. Suitable for products such as; Rice, Beans, Chickpea, Lentils, Sugar, Nuts, Powder Detergent, Coffee Beans, Salt, etc… Please check the sections in below for more details.
TECHNICAL SPECIFICATIONS
TECHNICAL DETAILSODM100
Filling Range20-1000 gr
Packaging SpeedPneumatic System 20-50 p/p/m
Type of Packaging MaterialOPP, CPP, PET, ALU, Metalize and other Laminated Films
Min. Dimensions of the Bag70 x 100 mm
Max. Dimensions of the Bag200 x 300 mm
Max. Width of the Roll450 mm
Inner Diameter of the Core76 mm
Max. Diameter of the Roll400 mm
Machine Dimensions1500x2000x3500mm
Machine Weight1.400 kg
Mechanic StructurePNEUMATIC / SERVO
Pneumatic SystemsFESTO
Control SystemSIEMENS / OMRON
Electricity Supply & Consumption380V AC – 5 Kwh
Air Supply & Consumption6 bar / 200 lt/min

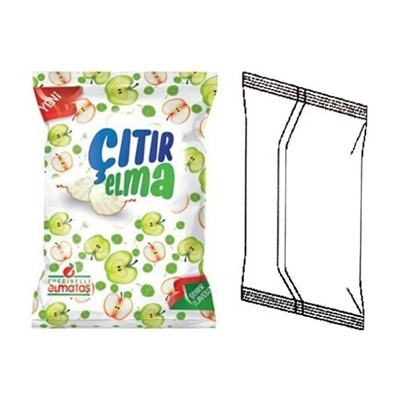

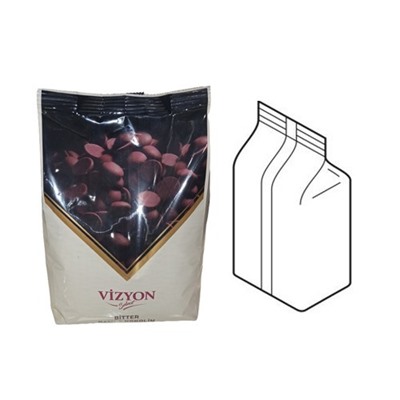

PACKAGE TYPES
OPTIONAL APPLICATIONS
» Unwanted materials checking and automatic reject systems before or after the filling process.
» Gas Flushing System
» Gas Level Controlling Systems
» Printer for batch number, due date and coding.
» Checkweigher Systems with automatic reject.
» Cleaning system on the platform
» Labeling System
» Eurohole, Roundhole or Handle Pounch
» Banner Applicator
» Taso Feeding Unit
» Anti-Static Bar
» Dust Sucking System
PRODUCTS SUITABLE WITH THE MACHINE
» Rice
» Beans
» Chickpea
» Lentils
» Sugar
» Nuts
» Powder Detergent
» Coffee Beans
» Salt
FEATURES AND ADVANTAGES
» Full Automatic working principle is reducing labor cost.
» Reduces Packaging Material Costs.
» PLC and HMI interfaces are easy to use.
» Modifications are easy and efficient
» Machines can easily integrated with production lines or cartoning systems.
» Machines are manufactured according to the CE Regulations and Safety Standarts.
» Full Automatic Roll Centering System
» End of Roll warning system with LED and Audio Alarm
» Easy Roll changing System
» Functioning with or without photocell
» Level Controll System
» Product protection systems can be easily integrated.
» Communication ability with SAP systems.
» Distance Controlling Systems helps to reduce service time and cost.
